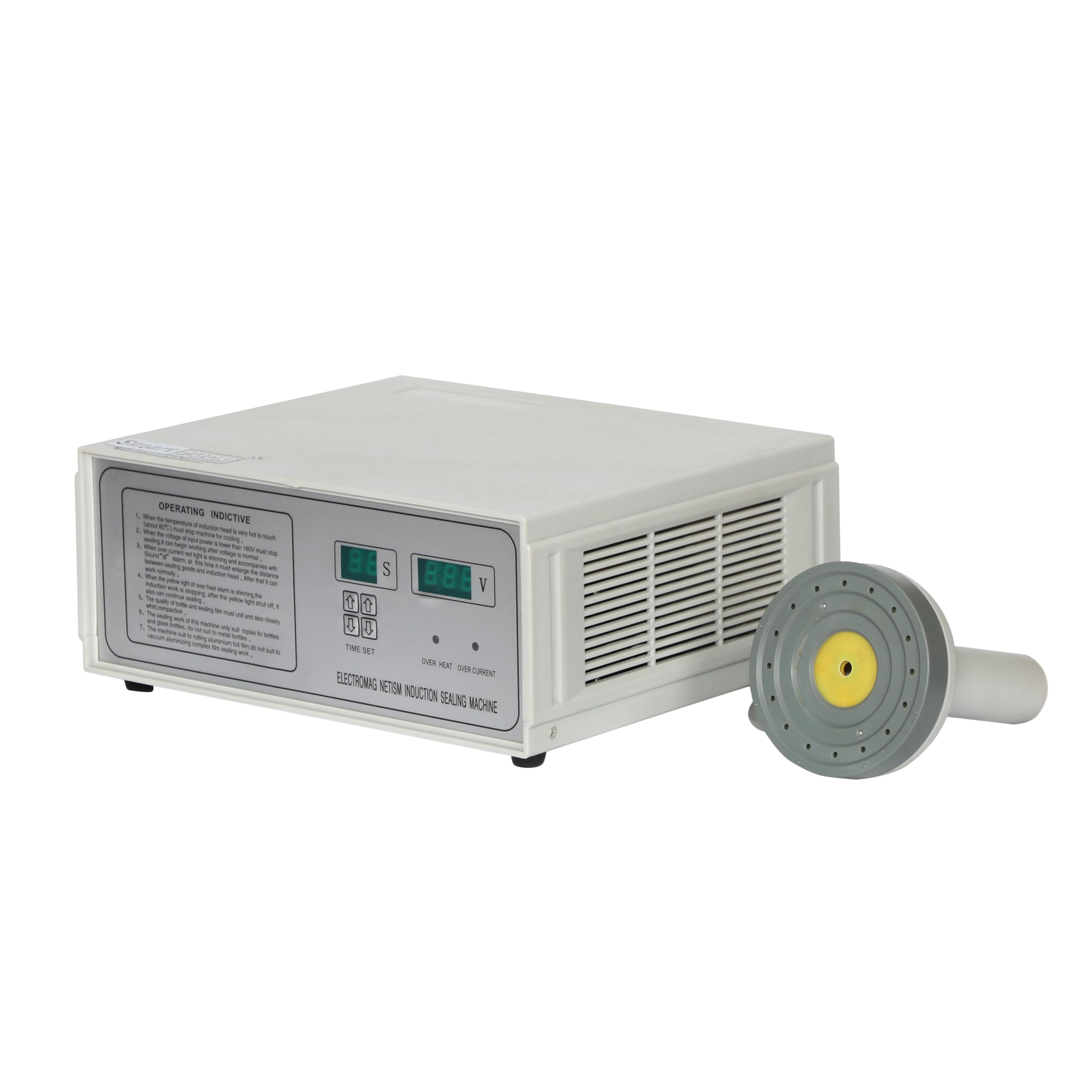

Manual Induction Sealing Machine

SUPPLY VOLTAGE 230V AC 50HZ
POWER 500 WATT
WORKING SPEED 0 TO 30 SEAL/ MIN
SEALING WIDTH 20 TO 100 MM
MAX CONVEYOR LOADING MAX 3KG
MACHINE WEIGHT 6KG
MACHINE SIZE (L*B*H) 340X290X150 MM
Category:

A Manual Induction Sealing Machine is a compact, hand-operated device used to seal the aluminum foil liner of caps onto plastic or glass bottles using electromagnetic induction heat. It’s ideal for small-scale production, laboratories, pharmacies, or startups that need tamper-evident, leak-proof sealing.


đź”§ What It Is:

This machine uses electromagnetic induction to heat the foil liner in the cap, melting the layer that bonds the foil to the container mouth—creating an airtight and secure seal.


⚙️ Key Features:

Feature Description
Manual Operation Hand-held sealing head; operator places it over the cap.
Cap Size Range Usually 20mm–100mm (varies by model).
Material Compatibility Works with PET, PE, HDPE, LDPE, glass bottles (with foil liners).
Digital Timer/Power Adjustable sealing time and power settings.
Sealing Time Typically 1–3 seconds per bottle.
Power Requirement 220V / 50Hz, single-phase (approx. 500–800W).

âś… Advantages:

  • Low-cost and portable

  • Easy to use — no air or water cooling required

  • Tamper-evident, leak-proof seal

  • Suitable for sealing liquids, powders, or semi-solids

  • No consumables beyond foil liners


đź§´ Applications:

  • Pharmaceuticals (syrups, tablets)

  • Food & beverages (juice, milk, sauces)

  • Cosmetics (shampoos, creams)

  • Agrochemicals and oils

  • Chemical bottles or sample containers


đź§Ş Important Notes:

  • Bottles must have an induction-compatible cap with foil liner (with a heat-seal layer).

  • Machine is not suitable for metal caps or non-foil liners.
